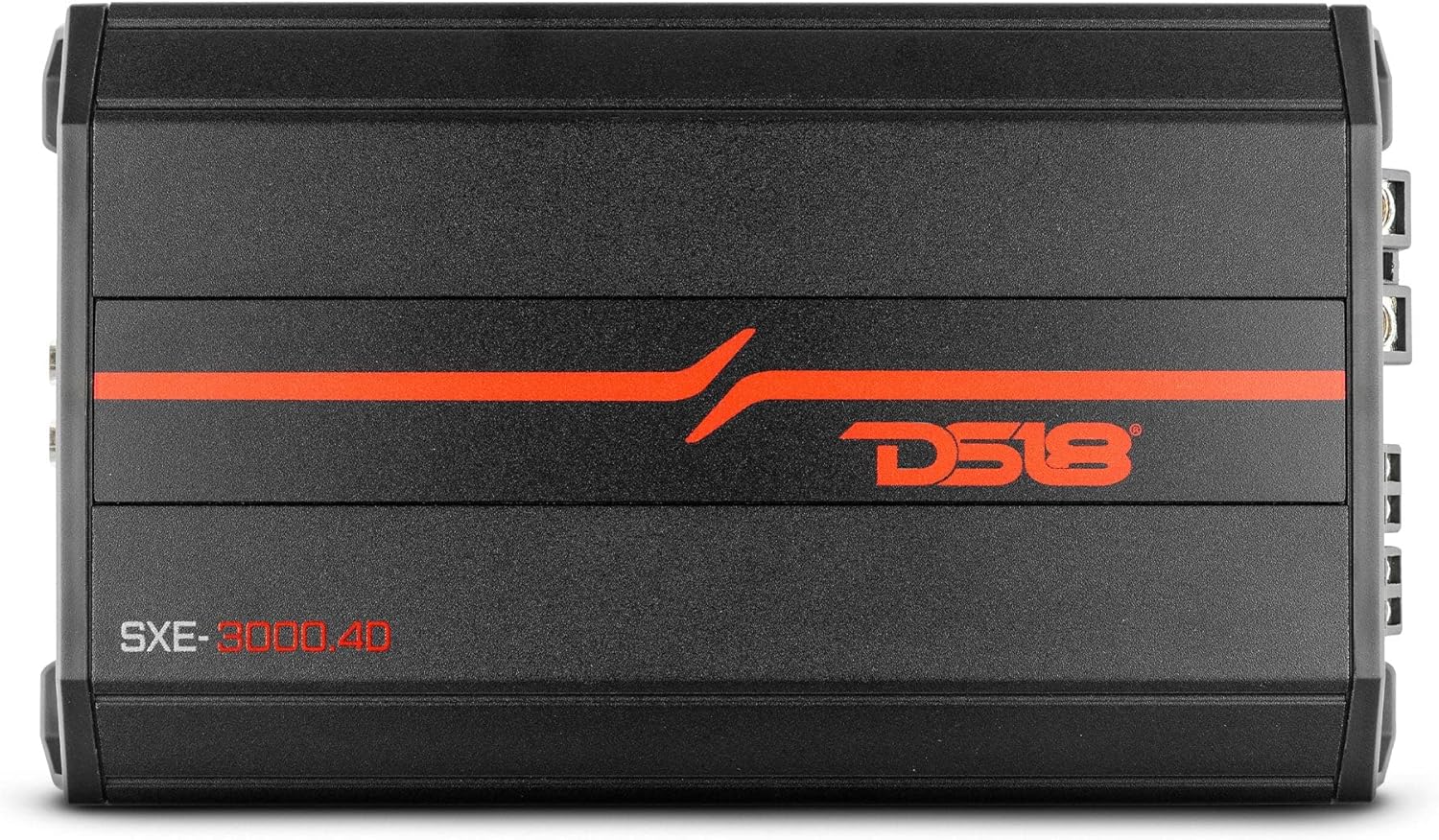

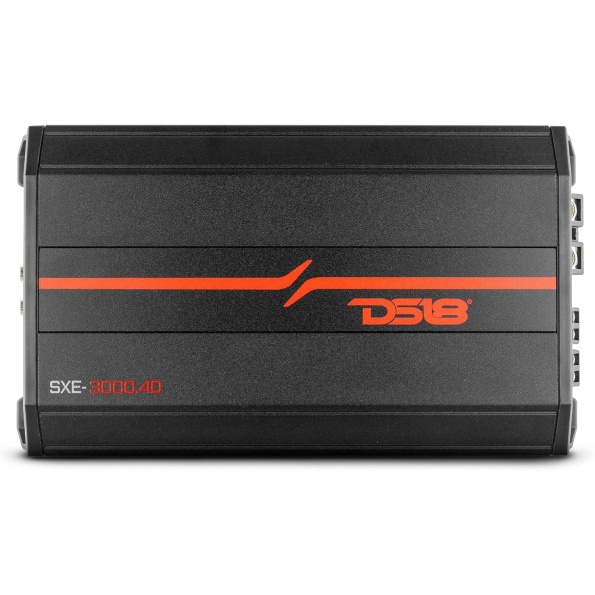

DS18 SXE-3000.4D/BK Car Amplifier Stereo Full-Range Class D 4-Channel 200×4 RMS

Product Description

POWER – Total Watts (Peak) 3000W – RMS Power @ 4 ohms 4 x 200W – RMS Power @ 2 ohms 4 x 320W – RMS Power @ 4 ohms Bridge 2 x 500W

AUDIO – Frequency Response 10Hz-20KHz – Signal to Noise Ratio 90dB – Efficiency @ 4 ohms 88% – Damping Factor 140 – Input Impedance 20kΩ – Channel Separation 45dB – Total Harmonic Distortion (THD) 0.05% – Low-Level Input Range 200mV-5V – Selectable X-Over HPF/FULL/LPF – X-Over Filter Range 40Hz-2KHz

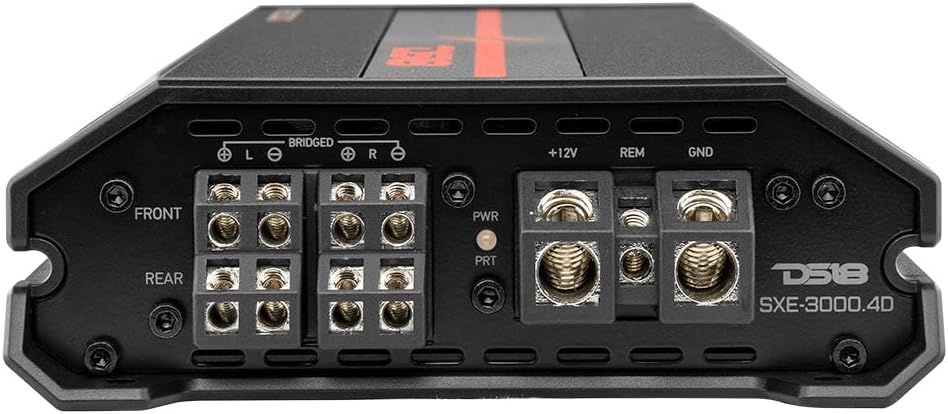

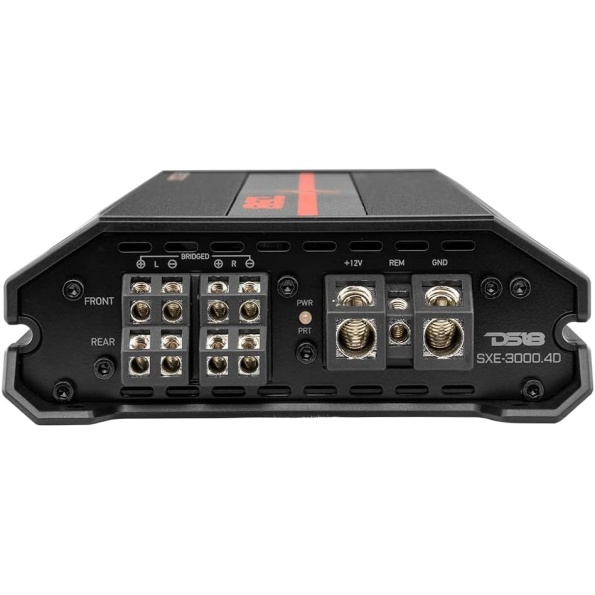

FEATURES – Amplifier Class Digital (D) – Amplifier Type Stereo Full Range – Number of Channels 4 – Minimum Impedance 2 Ohms Stereo / 4 Ohms Bridge – Led Indicator Power/Protect/Clip – Power Input Terminal Size 4Ga – Fuse Size 2 x 40A (80A) – Thermal Protection Yes (80℃) – Over-Load Protection Yes – DC Output Protection Yes – Short Circuit Output Protection Yes – Voltage Input Protection Yes (16.5v) – Clipping Protection Yes – Body Color / Finish Red / Black Brushed Aluminum

MEASUREMENT – Overall Length 9.8″ / 249.3mm – Overall Wide 5.5″ / 140mm – Overall Height 1.8″ / 48mm – Heatsink Length 8.34″ / 212mm – Gross Single Unit Weight 1.86Kg

GREAT FOR

· Car Audio

· Pro Audio

· Stunt Walls

· Motorcycle Audio

· Powersports Audio

· DIY Projects

HIGH PERFORMANCE – DS18’s SXE series of amps was designed for users looking for an extreme increase to the quality of music reproduced by their vehicle. The SXE-3000.4D guarantees your sound system’s speakers perform at their peaks on every use

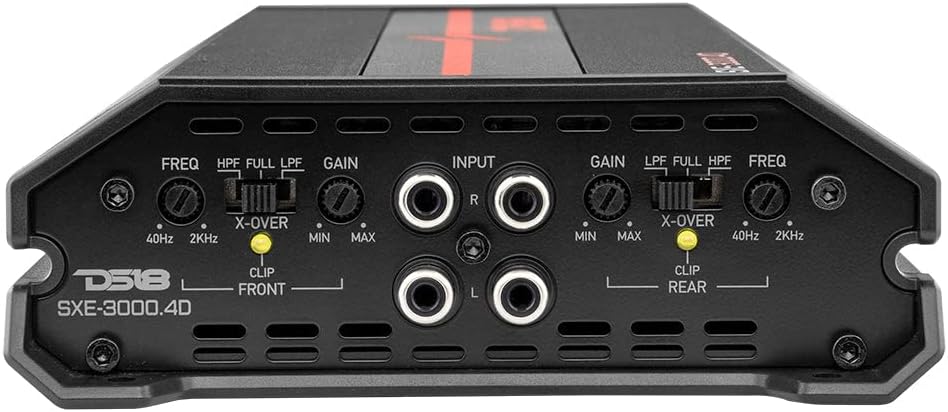

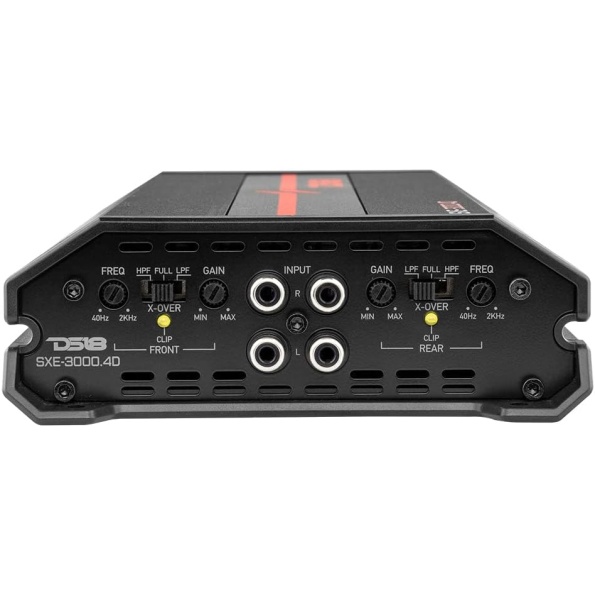

VARIABLE CROSSOVER – The SXE series of amplifier gives users the ability to tailor the audio reproduced by their vehicle to their personal listening preferences through the use of it’s fully variable crossover, adjustable gain input sensitivity, and multi-channel amplifier design: everything you need to take control of your listening experience

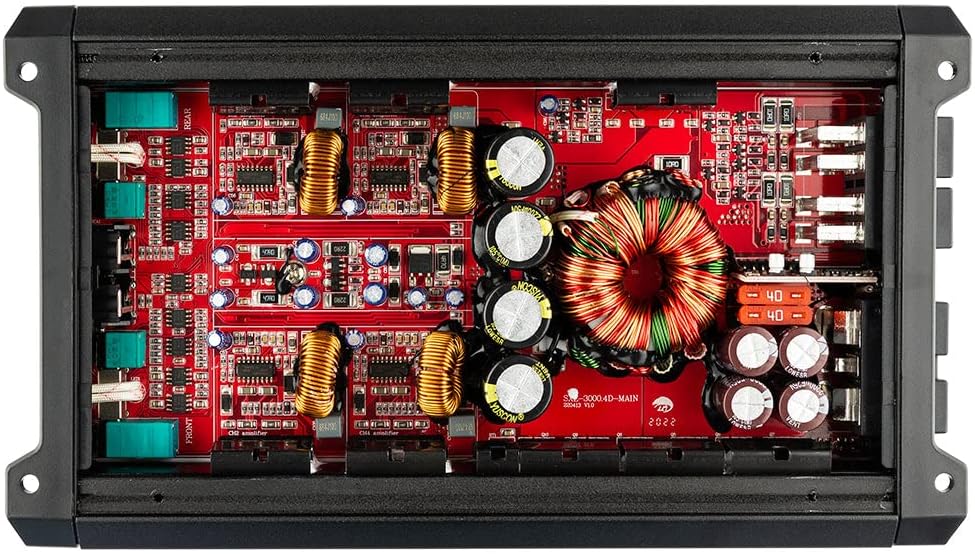

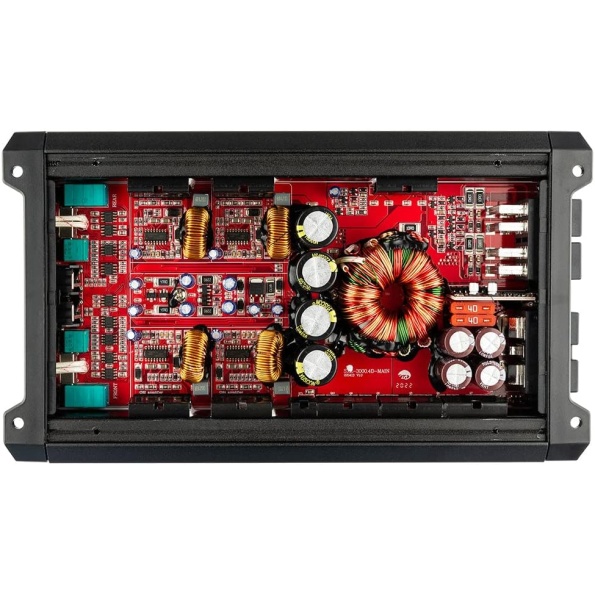

PERFECT SIZE – As a Class D amplifier, the SXE series uses power transformers significantly smaller than your average amplifier, making it the perfect size for any vehicle’s custom build: but, what it lacks in size it makes up for in power
SUPERCHARGE – The SXE-3000.4D has a power output of 500W x 2 CH bridged at 4-ohms, 320W x 4 CH at 2-ohms, 200W x 4 CH at 4-ohms: perfect power settings to supercharge any custom build
NEVER STOP INNOVATING ATTITUDE – DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market
